EasyMelt Induction Melting System

EasyMelt Induction Melting Furnace

complete with Water Cooler
for
GOLD - SILVER

EasyMelt EM-2G

Water Cooler

£4950 plus vat and delivery

Country of origin Bulgaria

Lease Finance Available:from £39.00 per week plus vat for 3 years

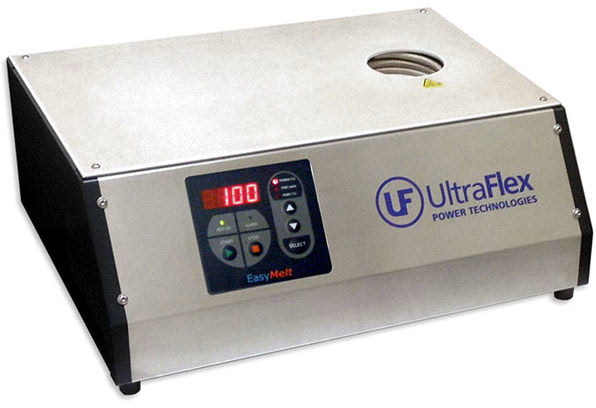

EasyMelt EM – 2G compact desktop unit, perfect for quick induction melting of small batches. Expected melting time for 2kg is 10-15 minutes.


Fast induction melting is achieved using efficient circuits with low energy consumption.

These flexible systems can be configured to melt different metals and alloys. Temperature control prevents overheating and burning of the metal.

The stainless steel front with high-temperature top cover ensures heavy-duty use. This reliable equipment is easy to install, maintain, and service. Can be operated continuously all day


Features

Specification

Adjustable Timer (1 – 30min) with audible sound
Power regulation (10 – 100%)
Build-in temperature reader
Temperature probe for models up to 1300 °C
LED panel displaying Power, Time and Temperature
Power (max) : 2.80 kW
AC Line, (50/60Hz), 1 Phase : 230 V ±10%
Melting Temperature (max) : 1300 °C
Crucible Capacity : 2 kg Gold
Crucible Volume : 124 cm3
Weight : 14 kg
Dimensions, LxWxH : 40 cm x 45 cm x 18 cm
Cooling Requirements : Wter (External)
Cooling Water (min) : 0.8 LpM (0.21 GpM) Inlet
Water Temperature (max) : 35 °C

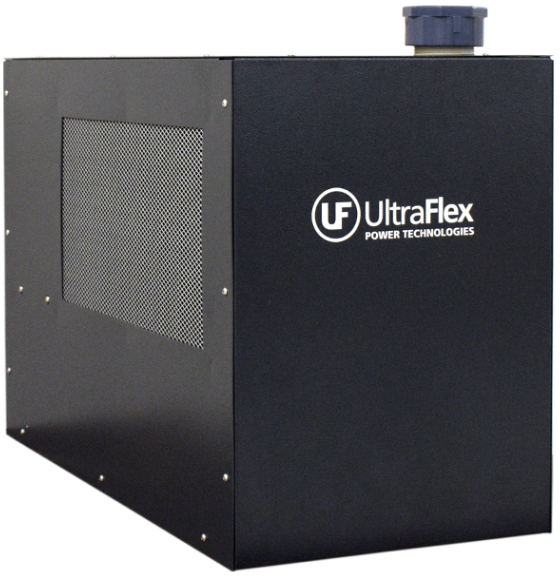

WATER COOLER FEATURES
  • Corrosion resistant polyethylene cooling tank equipped with convenient filling spout and visible water level
  • Nonferrous material construction eliminating coolant contamination due to electrolysis or chemical reaction
  • Polyamide pipes plumbing rated for 10 bar (145 PSI)
  • On/Off power switch with pilot light
  • Closed loop water system for efficient cooling through a high-pressure pump and heat exchanger
  • Reliable and simple to maintain
  • Low noise brass-body rotary gear pump with extended life
  • Adjustable output pressure for custom applications
  • Air and fluid filters for increased reliability
