EasyCast Centrifugal Casting Machine

EasyCast Jewellery Centrifugal Casting Machine



EasyCast J EC-12 is a compact and affordable centrifugal casting system perfect for small and Large jewellery manufacturers.

This universal casting machine can cast all metals and alloys: precious and non-precious such as Platinum, Gold and Silver. Centrifugal injection with high acceleration casting provides high quality, consistent result.

Advanced, efficient technology with automatic frequency setting and low energy consumption.

EasyCast J EC-12 utilizes fast melting using state-of-the art induction heating generator utilizing the latest technology. Casting in vacuum and inert gas atmosphere guaranties complete protection from oxidation. Integrated infrared temperature control guarantees casting quality and repeatability. The reliable modular system, is to maintain and service.



Lease Finance Available:from £99.00 per week plus vat for 3 years

£12,750.00

plus vat and carriage
Country of origin Bulgaria





Features

Specification: EC-12

  • Centrifugal injection jewellery casting system with pneumatic
    movement for fast coil descent
  • Internal water cooling system with pressure and water temperature
    control
  • Centrifugal arm balancing with adjustable counterweight
  • Advanced digital control panel with status and diagnostics
    messages Melting power regulation from 10% to 100%
  • DC motor with reduction gear and adjustable acceleration from 0.1 to 1 sec.
  • Max rotating speed – 500 rpm. Rotation
    timeout pre-set at 40 sec.
  • Auto locking of the chamber lid during
    centrifugal phase for maximum safety
  • Integral vacuum pump
  • Inert (argon or nitrogen) gas circuit included

Power (max) : 3.0 kW
AC Line : (50/60Hz), 1 Phase 230 ±10%
Melting Temperature (max) : 2000 °C
Crucible Capacity : 150g Pt (30g min), 150g Au, 80g Age
Crucible Volume : Graphite insert 10 cm3 Ceramic 30 cm3
Weight : 14 kg
Flask Size (max), DxH : 80 mm x 75 mm
IR Temperature reader/regulator : included
Water Cooling System : included
Vacuum Pump : included
Weight : 110 kg (242.5 Lb)

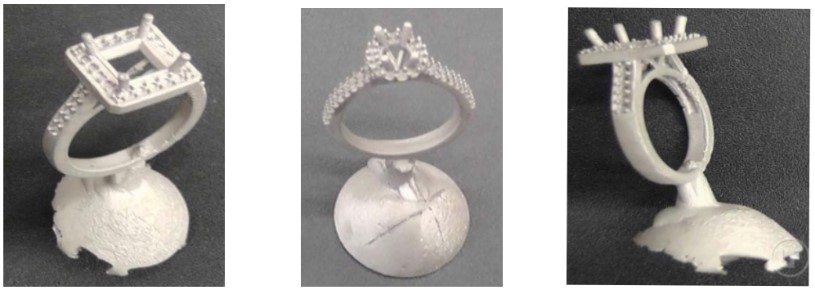

EXAMPLES OF PLATINUM CASTING
